EMS

62.00

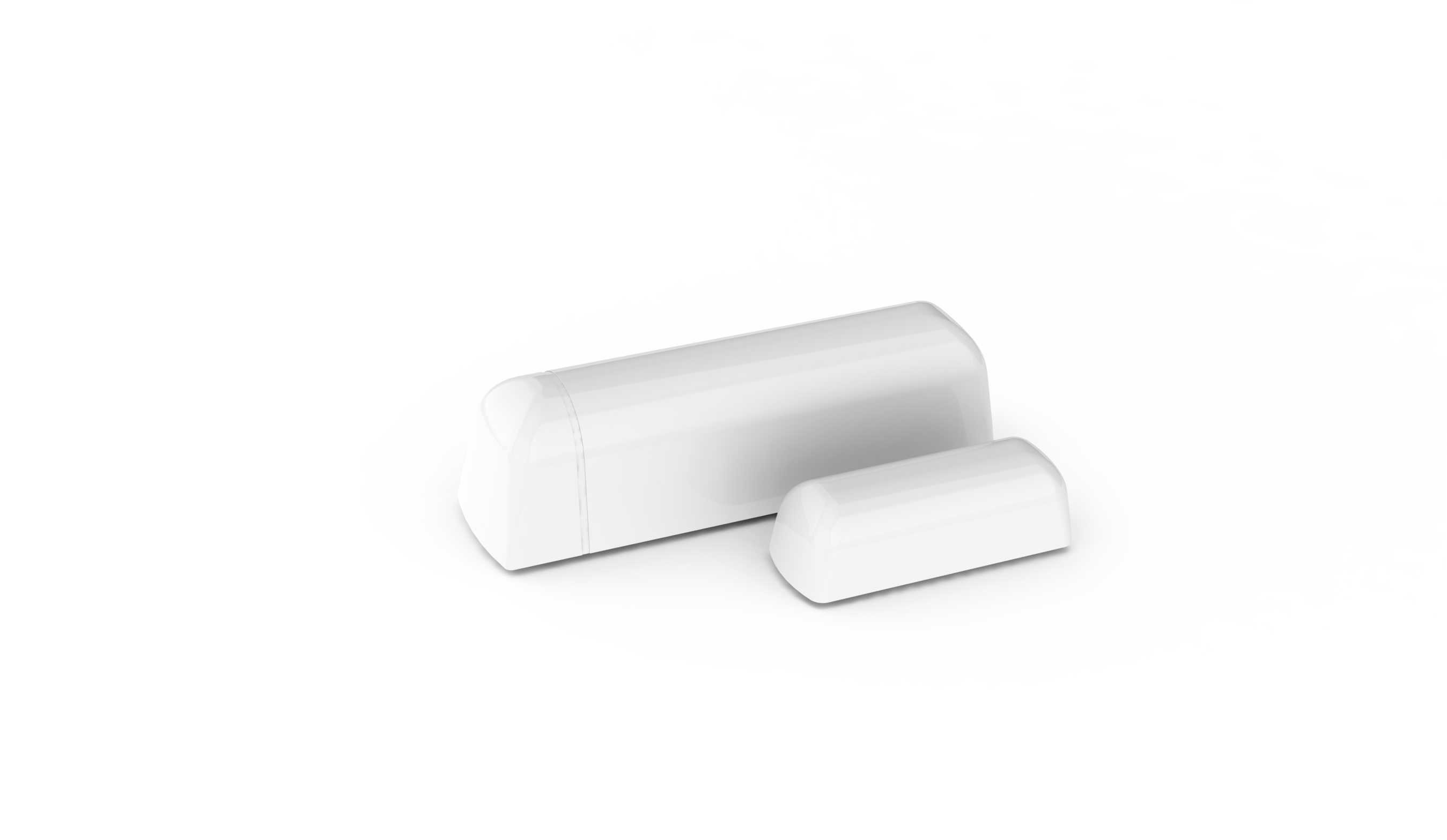

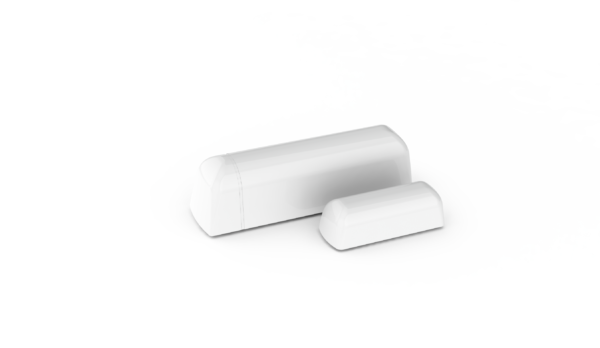

ELSYS temperature, humidity, acceleration, water leak, and activity sensor.
LoRaWAN®

Magnets are not included in this product. A magnet is required for measuring activity.
Batteries are not included. This product requires 1 x AA 3.6V Lithium Batteries (ER14505).

In stock

Quantity Price
1+ 62 EUR
SKU: EMS Categories: , ,

Description

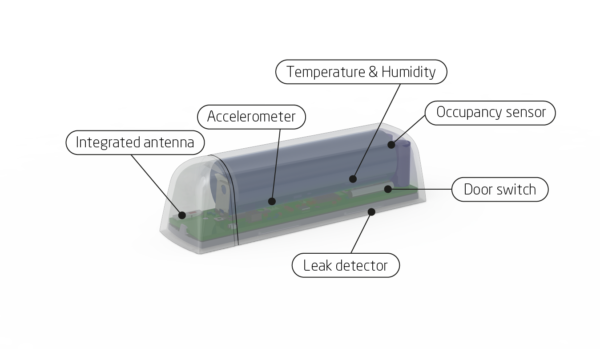

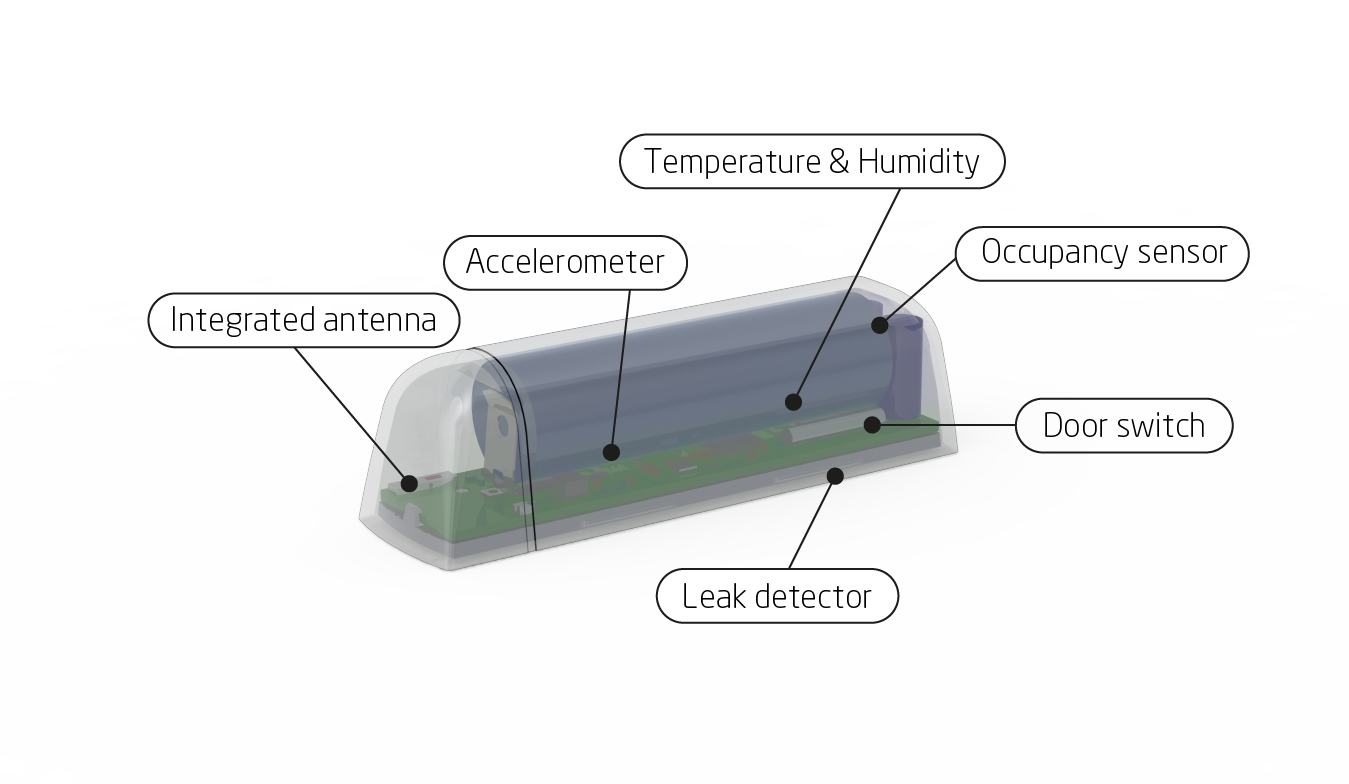

EMS is a wireless LoRaWAN® sensor for indoor environments that measures temperature, humidity, acceleration, water leak, and activity. A magnet is required for measuring activity. Its small size is ideal for mounting on limited surfaces, and its Scandinavian design makes it discrete in business, public, and home environments. EMS requires low maintenance with its long battery life (up to 10 years), and the batteries can easily be changed when needed. Configurations of the sensor, such as sample rate, data rate, encryption keys, triggers, activation, and more, can easily be done via NFC with a smartphone or via downlink.

Batteries are not included. This product requires 1 x AA 3.6V Lithium Batteries (ER14505).

Visit our Documents & Firmware page to download the operating manual.

Additional information

Weight 0.05 kg
Dimensions 75 × 21 × 21 mm
Mounting

Adhesive tape. Included

Capabilities

Temperature, humidity, acceleration, water leak and activity.

Door magnet

Optional

Enclosure

Plastic, PC / ABS

IP rating

IP20

Operating temperature

0 to 50 °C

Operating humidity

0 to 85 % RH (non-condensing)

Usage environment

Indoor

Operating voltage

3.6V DC

Battery type

AA 14505 (Li-SOCI2)

Expected battery life

Up to 10 years (Depending on settings and environmental factors)

Sampling interval

Default 10 min. Configurable via NFC and downlink

Data upload interval

Default 10 min. Configurable via NFC and downlink

Wireless technology

LoRaWAN® 1.0.4, Regional Parameters RP2 – 1.0.3

Wireless security

LoRaWAN® End-to-End encryption (AESCTR), Data Integrity Protection (AESCMAC)

LoRaWAN device type

Class A End-device

Supported LoRaWAN® features

OTAA, ABP, ADR, Adaptive Channel Setup

Supported LoRaWAN® regions

EU868, IN865, US915, AU915, AS923, KR923, HK923

RF transmit power

Max 14 dBm EIRP

EU directives compliance

RED 2014/53/EU, RoHS 2011/65/EU, WEEE 2012/19/EU
