Connections ELT Lite

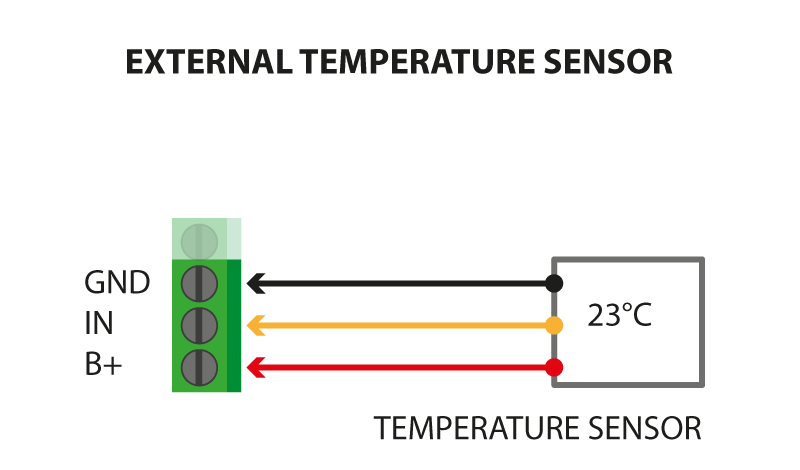

Temperature sensor input


Temperature sensor input. ELT-1 is configured for 1-wire interface. Connect a DS18B20 compatible sensor. Select “Temperature sensor 1 wire” in android application “Sensor Settings”. ELT input is internally pulled up by 2.2kΩ.

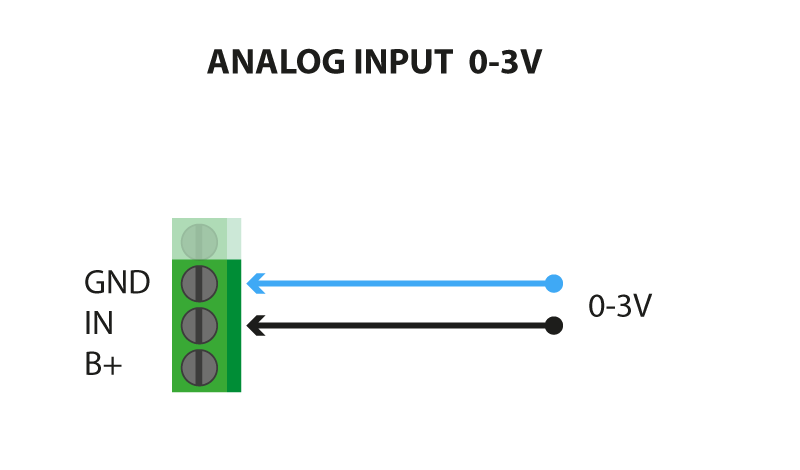

Analog input 0-3 Voltage


Analog input (0-3V), input signal between input and ground.
Select “Analog input 0-3V” in android application “Sensor Settings”.
ELT input is internally pulled down.

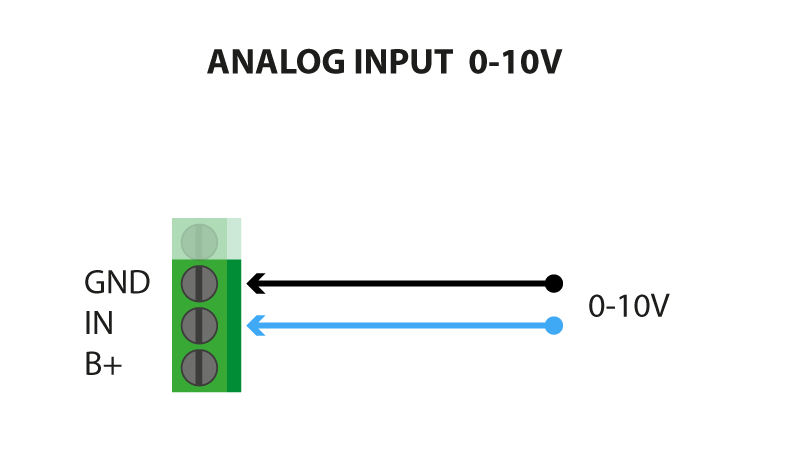

Analog input 0-10 Voltage


Analog input (0-10V), input signal between input and ground.
Select “Analog input” in android application “Sensor Settings”.
ELT input is internally pulled down, and the input impedance is 7.4 kΩ.

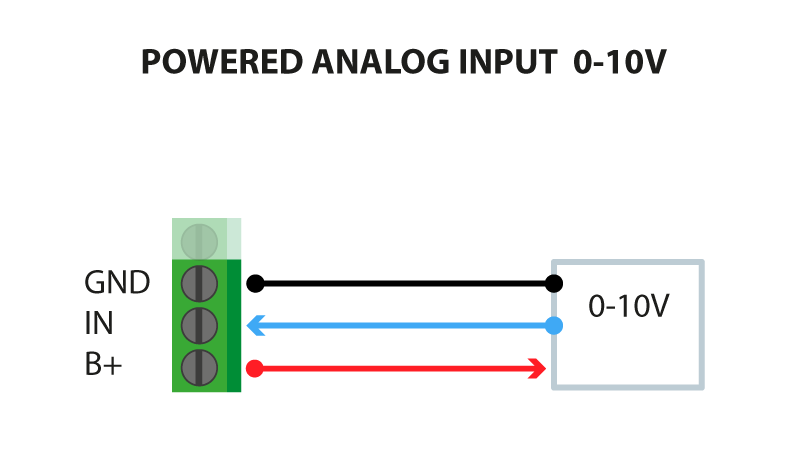

Powered analog input


Analog input (0-10V), input signal between input and ground. +3V present at B+ pin.
Select “Analog input” in android application “Sensor Settings”. Select “Eternal startup time” in “Sensor Settings” and configure ON-time for sensor. External startup time is how long the sensor will be powered before sampling value. ELT input is internally pulled down and the input impedance is 7.4 kΩ

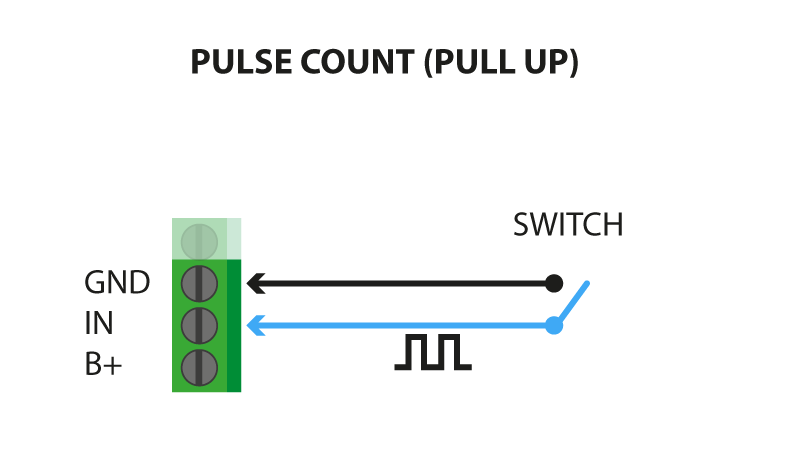

Pulse count (pull up)


Pulse count input, input signal between input and ground
Select “Pulse input(pull up)” in android application “Sensor Settings”. ELT input is internally pulled up by ~50 kΩ*.

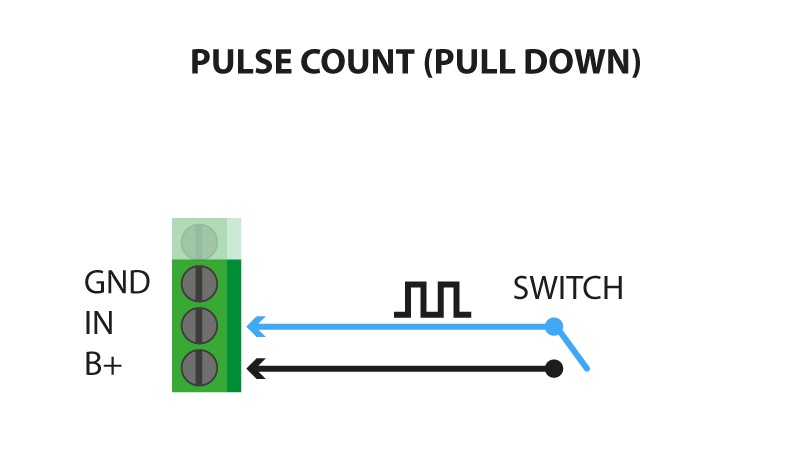

Pulse count (pull down)


Pulse count input, input signal between input and B+. Select “External startup time” in “Sensor Settings” and configure ON-time for always on that is >1000000ms.
Select “Pulse input(pull down)” in android application “Sensor Settings”. ELT input is internally pulled down by ~50 kΩ*.

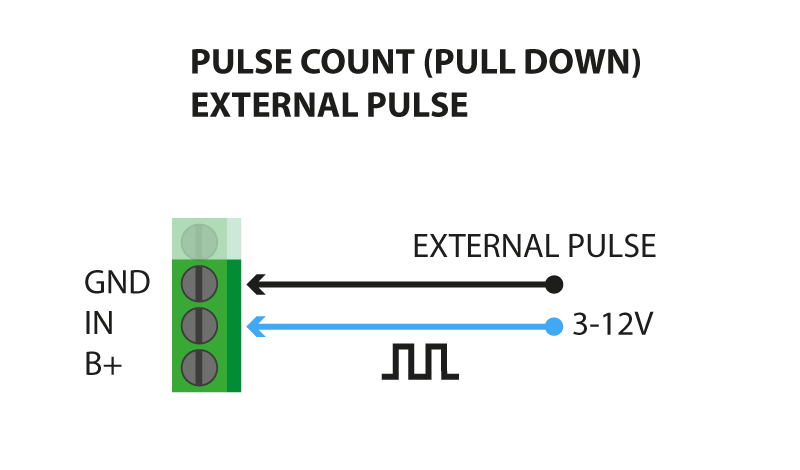

Pulse count (pull down) – External pulse


Pulse count input, input signal between input and GND. Pulse signal  from 3 to 12 voltage.
Select “Pulse input(pull down)” in android application “Sensor Settings”. ELT input is internally pulled down by ~50 kΩ*.

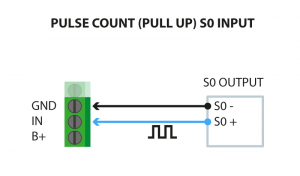

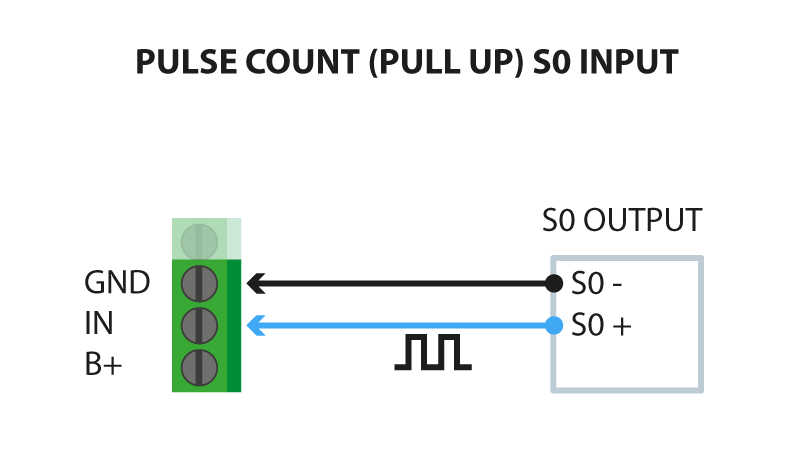

Pulse count (pull up) -S0 input


Pulse count input, S0 signal between input and ground
Select “Pulse input(pull up)” in android application “Sensor Settings”. ELT input is internally pulled up by ~50 kΩ*.

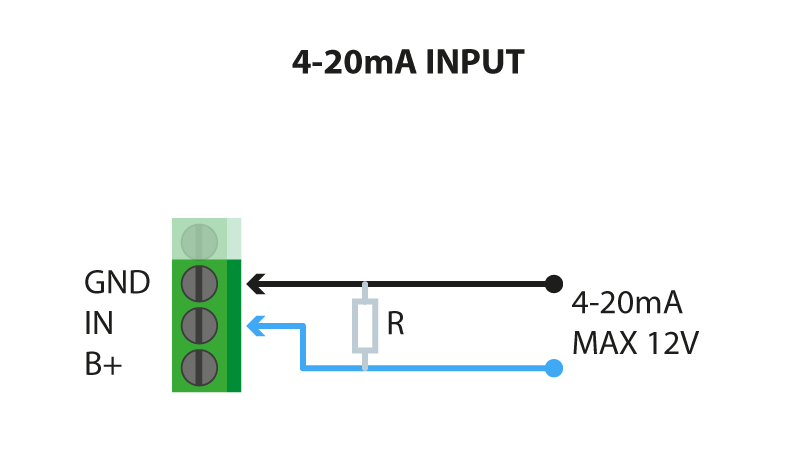

4-20mA input


4-20mA sensor input. Select “Analog input” in android application “Sensor Settings”. Connect resistor parallel to the input. Value of R can be calculated as R=UxI. For full range, use 500Ω resistor. (20mA will then read as 10V)

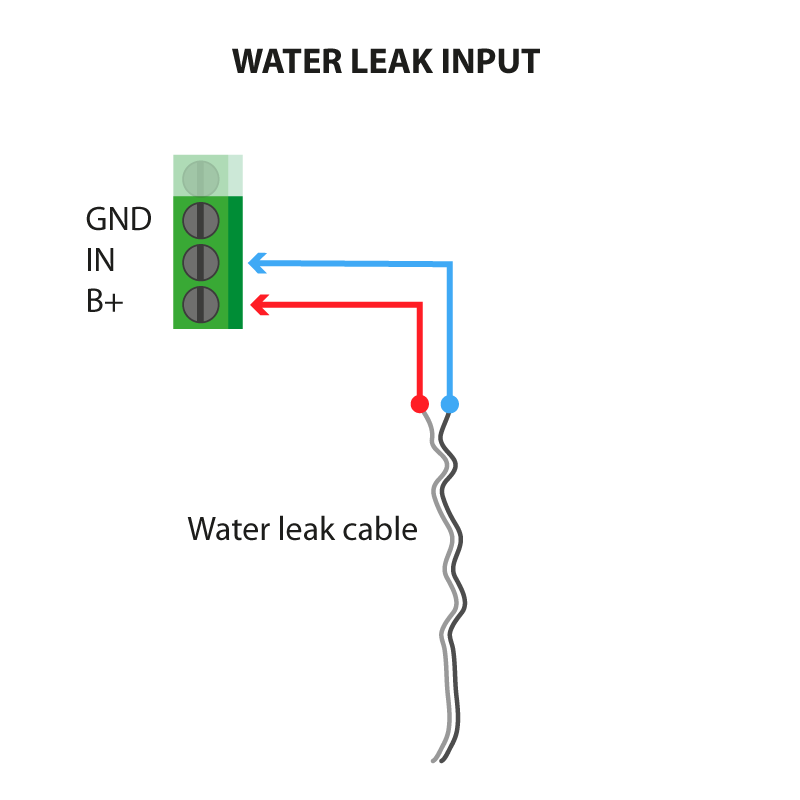

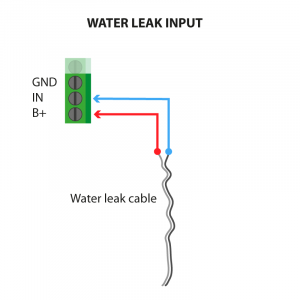

Water leak input ELT Lite


*For lower values, e.g. if there are long cables, this can be adjusted with an external resistor in parallel.
